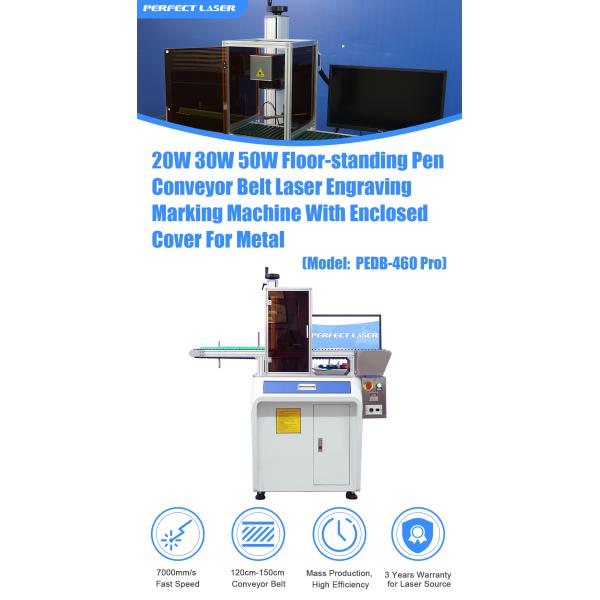

20W 30W 50W Floor-standing Pen Conveyor Belt Fiber Laser Marking Machine With Enclosed Cover
Model: PEDB-460 Pro
★ Machine Introduction
This laser marking machine is built for precision products like fountain pens, featuring a fiber laser and high-precision galvanometer for stable power, fine beam quality, and fast, accurate marking with lasting clarity.
The laser pen engraving machine supports fly marking for assembly lines and uses smart sensors with a custom conveyor to detect, mark, and count automatically. The enclosed, non-contact design is energy-efficient, eco-friendly, and low-maintenance.
The powerful software offers flexible control over marking content and speed, enabling customized marks that boost productivity and strengthen anti-counterfeiting.
★ Machine Features
1. With a high-performance motor and fast galvanometer, this pen laser engraver runs 24/7 and can mark up to 60 pens per minute. It includes automatic counting and is built for large-scale production, helping cut labor, tool, and material costs.
2. The pen laser engraver is equipped with an auto-focus system and a high-quality laser source. It automatically adjusts the marking height based on material thickness, enabling precise engraving of complex designs. Marking depth is adjustable, and the results are clear, durable, and environmentally friendly.
3. It features full air cooling, a laser tube lifespan of up to 100,000 hours, and no consumables. The system is stable, reliable, and has a low failure rate.
4. The interface is simple and user-friendly, supports custom conveyor spacing, and runs with low noise.
★ Application
The pencil laser engraving machine is widely used for marking detailed patterns, logos, and text in the pen industry. It works with a variety of materials, including gold, silver, stainless steel, iron, aluminum, copper, and plastics.
★ Technical Data
| Product Name | Pen Laser Engraving Machine PEDB-460 Pro |
| Output Power | 20W | 30W | 50W |
| X Axis Stroke | 300-500mm (can be customized) |
| Marking Speed | ≤7000mm/s |
| Marking Size | 110*110mm (standard) customizable |
| Minimum Character Height | 0.2mm |
| Repeat Accuracy | ＜24 μrad |
| Marking Depth | 0.5mm (Depends on the Material) |
| Minimum Line Width | 0.06mm(Depends on the Material) |
| Voltage | AC 220V 50KHz |
| Motor | Stepper Motor / Servo motor (Optional) |
| Displacement Positioning Accuracy | 0.05mm/0.02mm |
| Displacement Repeat Positioning Accuracy | 0.02mm/0.01mm |
| Displacement Speed | 100mm/s--300mm/s |
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
★ Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
